DVR and AHD Camera Guide 2026: Upgrade Your Coax CCTV System

If your building already has coax cables in the walls, ripping them out for IP cameras costs thousands you do not need to spend. AHD technology pushes 1080p HD video over the same coax cable your old analog system already uses — the upgrade is a new camera and a new DVR, not a rewire. Most contractors miss this and quote a full IP rip-and-replace when a coax HD upgrade would deliver 80% of the result at a fraction of the cost. This guide explains what AHD actually is, how it compares to TVI and CVI, when a DVR still beats an NVR, and the exact checklist for upgrading an existing analog system.

Keep reading for more!

The Snapshot

• AHD (Analog High Definition) transmits 1080p (and up to 5MP) HD video over existing coax cable — no rewiring, no IP network required.
• A DVR records coax/analog cameras; an NVR records IP cameras. The recorder must match the camera signal type.
• AHD competes with TVI and CVI — three incompatible HD-over-coax standards. Match the camera and DVR on the same standard.
• A typical 4-channel AHD kit (4 cameras + DVR + 1TB) runs $150-350 retail; factory-direct wholesale is 30-50% lower.
• Coax HD tops out around 5MP and 1080p-2K practical; beyond that, IP is the only path.

What Is a DVR?

A DVR (Digital Video Recorder) is the recording brain of an analog or coax-based CCTV system. It receives video signals from coax cameras, converts them to digital, compresses them (H.264/H.265) and writes them to hard drives. The name is historical — early models recorded VHS-style analog signals; modern DVRs are fully digital on the storage side but still accept analog/coax camera inputs.

"Dvr dvr" and "what is a digital video recorder" searches usually come from buyers comparing recorders. The practical definition: if your cameras connect with BNC coax connectors, you need a DVR. If they connect with Ethernet, you need an NVR. The two are not interchangeable, and the biggest installation error is buying a recorder that does not match the camera signal.

Modern DVRs support AHD/TVI/CVI HD-over-coax inputs (more below), H.265 compression, motion detection and remote viewing through a free app. An "ip camera dvr" hybrid unit also exists — a DVR with a few IP camera ports for mixed sites — but the core distinction stays: coax in, DVR out.

What Is AHD? The HD-Over-Coax Standard

AHD (Analog High Definition) is a video transmission standard that carries HD resolution — 720p, 1080p, and up to 5MP — over traditional analog coax cable. Developed by a consortium of Chinese chipmakers in 2012, it was created to let the enormous installed base of coax cabling jump from grainy analog to HD without replacing any cable.

How AHD works

AHD encodes the video signal differently from old analog (CVBS). Instead of one composite signal capped at roughly 480p, AHD transmits a modulated HD signal over the same RG59/RG6 coax. The camera side encodes, the DVR side decodes. Because both ends are AHD-compatible, the picture arrives at 1080p with color and audio support — dramatically better than the 480i of old analog.

What does AHD mean for a buyer?

Three things. First, "what is ahd" buyers are almost always upgrading an old analog system: AHD lets them keep the coax and the existing camera positions, swap cameras and DVR, and get HD immediately. Second, AHD is one of three competing standards — TVI and CVI do the same job — so camera and recorder must be the same standard. Third, AHD has distance advantages: coax runs of 300-500m are normal, far beyond the 100m Ethernet limit of IP cameras.

"Meaning of ahd", "define ahd" and "what does ahd mean" searches all converge on the same answer: Analog High Definition, the cheap path from old analog to HD video on existing cable.

AHD vs TVI vs CVI: The Three Coax HD Standards

Three companies backed three incompatible standards for HD-over-coax. Knowing which one your site uses prevents the classic "camera and recorder from different standards show no picture" failure.

The practical rule

Match everything from one standard. An AHD camera on a TVI port shows nothing (or a rolling image). Some DVRs support multiple standards per port (auto-detect), which is the safe buy for retrofit work where existing cameras may be mixed. When you buy an "ahd dvr kit", camera and recorder are matched from the factory — that is the point of a kit.

Which standard should a new buyer pick?

AHD for price and ecosystem depth; TVI if you are tied to Hikvision gear or need 4K over coax; CVI if Dahua is your existing brand. For a clean new install, IP is still the better long-term bet — but if the building is coax, AHD is the pragmatic winner.

DVR vs NVR: Which Recorder Fits

The DVR vs NVR decision is simpler than the marketing makes it: it is determined by your cameras, not by preference.

If you already have coax in place, DVR + AHD cameras is the least-cost upgrade. If you are starting fresh, NVR + PoE IP cameras scales better. Hybrid DVRs (coax + IP ports) exist for mixed sites and are worth asking for when you expect to add IP cameras later.

Analog Camera vs IP Camera

At the camera level the choice mirrors the recorder decision. Analog/coax cameras are simple, cheap and distance-tolerant but capped in resolution; IP cameras are smarter, sharper and network-native but need Ethernet.

• Analog/AHD cameras: 1080p-5MP, power + video on coax (or separate), 300m+ runs, no network knowledge needed, up to ~$20-60 per camera retail.
• IP cameras: 2MP-8MP, PoE single cable, in-camera analytics, ONVIF interoperability, ~$30-150 per camera, 100m Ethernet limit.
• Decision rule: coax exists → AHD; new build → IP; mixed → hybrid DVR.

The "what is analog camera" and "ip camera vs analog camera" searches both land here: analog is the simple signal-based camera, IP is the network camera, and the recorder must match.

AHD DVR Kits: What You Actually Get

"Ahd dvr 8 camera kit" and "ahd dvr kit for home" searches are buyers who want a complete system in one box. A kit typically includes:

• DVR: 4/8/16-channel, H.265, HDMI+VGA output, remote app support
• Cameras: 1080p-5MP AHD bullets and/or domes, matched to the DVR standard
• Cables: pre-terminated coax (BNC) with power wires — some kits include the full run lengths
• Power: 12V PSU with splitter for the cameras
• Storage: often sold bare — you add your own HDD (1TB-4TB typical)

Kits remove the compatibility risk entirely: everything is matched and tested before shipping. For a reseller or installer, buying kits in volume from a factory-direct supplier (MOQ 10-50 units) is the standard way to stock a lineup without managing individual SKUs.

Channel Count and Storage

Channel count and storage math are the same for DVR and NVR. Count cameras today, add 25-50% headroom, then size the drive.

H.265 halves storage vs H.264 at equal quality; motion-only recording cuts it by another 50-70%. A "4 channel dvr" with 1TB is a reasonable start for a small shop; commercial sites usually want 2-4TB minimum and a retention target of 30 days.

DVR Installation and Setup

DVR installs are the fastest CCTV deployments because coax is forgiving. The sequence:

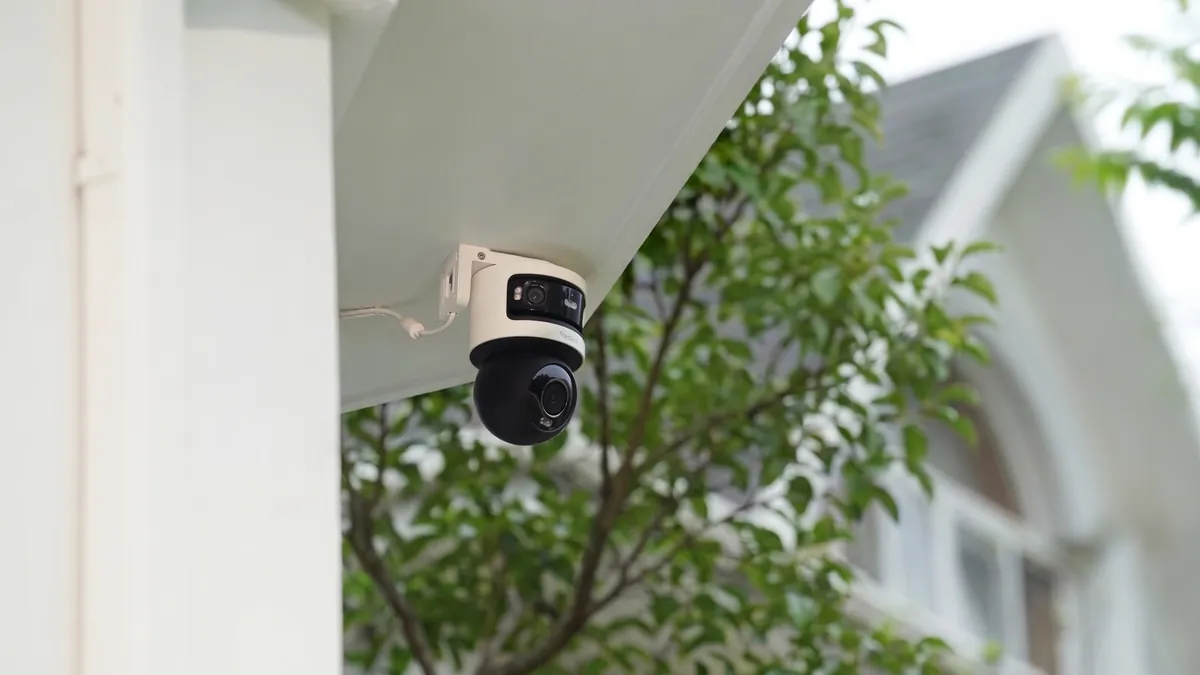

1. Position cameras

Mount at 2.5-4m, aim for face capture, avoid backlight. AHD bullets suit perimeters; domes suit interiors where tamper resistance matters.

2. Run and terminate coax

RG59 for runs under 300m, RG6 beyond. Terminate BNC connectors cleanly — a bad crimp is the #1 cause of "no picture". Keep power (12V) runs separate from data where possible.

3. Connect the DVR

Plug cameras into the DVR's BNC ports (channel order matters for labeling). Connect HDMI to a monitor, add the HDD (SATA), and power on.

4. Configure

Set camera standard (AHD/TVI/CVI or auto-detect), resolution per channel, H.265, motion zones, and schedule. Create the remote-viewing account and scan the DVR's QR code in the app for P2P access — no port forwarding needed.

5. Verify

Check every channel at night, confirm playback, and test remote viewing on cellular data. A DVR with "xmeye dvr embedded linux" firmware (the common embedded platform) exposes the same app workflow across brands — the login flow is nearly identical.

Coax HD vs IP: The Real Cost Difference

Contractors quote IP systems more often not because IP is better for every site, but because it is easier to sell. The cost math for an existing coax building tells a different story.

That 3-4x gap is why "coax dvr" and AHD searches keep growing even as IP dominates new installs. The trade-off is real — IP gives higher resolution ceilings and smarter analytics — but for a shop, warehouse or school that already has coax, AHD delivers 80% of the benefit for a third of the cost.

When the gap narrows

If the site needs 4K detail, deep analytics (license plate recognition, people counting) or many cameras per switch, IP wins outright and the cabling cost is justified. The decision is not "AHD vs IP forever" — it is "what does this building already have, and what does this site actually need."

Applications: Where Coax HD Systems Still Shine

Coax systems are not a relic. Three site classes keep buying DVR + AHD because the alternative does not fit.

1. Long perimeters and large grounds

Coax runs 300-500m without repeaters; Ethernet stops at 100m per segment. A factory perimeter, farm boundary or parking lot edge can be covered with AHD cameras at distances that would force IP sites to add switches, fiber or PoE extenders. For "ptz camera ahd coaxial" installations on long runs, this is the decisive advantage.

2. Existing buildings with finished interiors

Re-cabling a finished office, shop or school means chasing walls, lifting floors and repainting. If coax is already in place — even 10-year-old RG59 — an AHD swap needs no structural work at all. This is the single most common trigger for "ahd dvr 8 camera kit" purchases: the owner wants HD without a renovation.

3. Budget-conscious small businesses

A small shop, restaurant or clinic needs deterrent coverage and usable evidence, not 4K analytics. A 4-channel AHD kit with 1080p cameras, a 1TB DVR and remote app access costs less than one high-end IP camera alone. The ROI on theft prevention is immediate, and the system is simple enough that the owner maintains it without an integrator.

4. Regional resellers and installers

For B2B buyers, AHD kits are the inventory workhorse: low cost per SKU, high turnover, and no compatibility surprises because the kit is factory-matched. Distributors and installers stock AHD kit lines (MOQ 10-50 units) alongside IP, and quote coax HD first for retrofit customers — it closes faster.

Troubleshooting Coax and DVR Problems

Field failures on coax systems are almost always one of four things. The fixes below cover 90% of support tickets.

No picture on one channel

Check in order: BNC connector seating (re-terminate if loose), camera power (12V at the camera, not just at the PSU), and channel standard (the DVR port set to AHD but the camera is TVI — or auto-detect is off). A bad crimp at either end is the most common cause of intermittent or missing video.

Rolling or distorted image

Almost always a standard mismatch — the camera's coax HD standard does not match the DVR port. Set the port to auto-detect, or match both ends to the same standard. This is why factory-matched kits exist.

Footage missing overnight

Check the recording schedule (some DVRs default to motion-only and the motion zones are misconfigured), the HDD health (SMART errors), and the power: a marginal 12V PSU that dips under load drops cameras at peak demand. Replace undersized PSUs before adding cameras.

Remote viewing fails

Confirm the DVR's P2P status shows online in the app (the "xmeye" and equivalent embedded platforms have a status indicator), check the QR code was scanned to the correct account, and verify the network does not block the P2P relay ports. Port forwarding is not needed for P2P — if it was configured historically, remove it for security.

DVR and AHD Questions Buyers Ask

1. Can I mix AHD and IP cameras on one DVR?

Only on hybrid DVRs with dedicated IP ports. Standard DVRs accept coax only. Check the spec sheet for "hybrid" or "IP channel" support before assuming.

2. Does AHD work with my old analog cameras?

No — AHD needs AHD cameras. Old CVBS analog cameras on an AHD port will show a distorted image. The upgrade is camera + DVR together, reusing only the cable.

3. How far can AHD run?

Typically 300-500m on good RG59/RG6 coax with proper termination. This is AHD's biggest advantage over IP (100m Ethernet limit) for long perimeters.

4. Is 5MP AHD worth it over 1080p?

For identification at distance, yes — 5MP gives ~2.3x the pixel density of 1080p. For tight indoor spaces, 1080p is usually enough and cheaper.

5. What is an embedded DVR?

An embedded DVR runs a purpose-built Linux firmware (often busybox-based, e.g. "nt98321 linux dvr" or XMeye platforms) instead of a PC. It is the standard architecture — low power, stable, boot in seconds, no OS maintenance.

6. Can I upgrade just the cameras and keep my old DVR?

Usually no. Old analog DVRs do not accept AHD/TVI/CVI signals — the decoder is built into the recorder. To go HD, both ends must change. The one thing you keep is the cable, which is exactly why AHD upgrades are cheap.

7. What is the real difference between 720p and 1080p AHD?

Roughly 2.25x the pixels (921,600 vs 2,073,600). At the same distance, 1080p identifies a face or license plate noticeably further away. The price gap between 720p and 1080p AHD cameras is small — buy 1080p unless the budget is extremely tight.

8. Do AHD systems work at night?

Yes — AHD cameras have the same IR LED and low-light options as IP cameras. For full-color night capability (0.1 Lux, F1.0), the same full-color sensor technology used in IP cameras is available in coax form; check the spec sheet for "full color" or "color night vision" support.

Buying Guide & Checklist

Use this checklist when comparing DVR and AHD quotes, whether for one site or a wholesale container. Compare against the concrete DVR and AHD product range.

• Standard match: cameras and DVR on the same coax HD standard (AHD/TVI/CVI) or auto-detect DVR
• Resolution: 1080p baseline; 5MP where identification distance matters
• Codec: H.265 (not just H.264) for storage efficiency
• Channels: current + 25-50% headroom
• Storage: HDD not included? Confirm SATA bays and max capacity
• Remote: free P2P app, no per-camera subscription
• Output: HDMI + VGA for local monitoring
• Surge: 6KV protection on outdoor runs
• Wholesale: MOQ, mixed-SKU kitting, lead time in writing

The Bottom Line

If the building has coax, AHD is the upgrade path that saves thousands: keep the cable, swap cameras and recorder, get HD the same day. Match the standard, buy H.265, size the drive for your retention target, and the system runs for a decade. If you are starting from zero cable, IP remains the better long-term investment — but for the world's existing coax, AHD is the quiet champion.
